Why Your Cricut Print-Then-Cut Won't Line Up (and How to Fix It)

Print-then-cut should be simple: print your design, load it, and let the machine cut neatly around the edge. When the cut lands a few millimetres off - or the machine refuses to read the sensor at all - it is nearly always one of a handful of causes. Here is how each one goes wrong and how to fix it.

How Cricut print-then-cut actually works

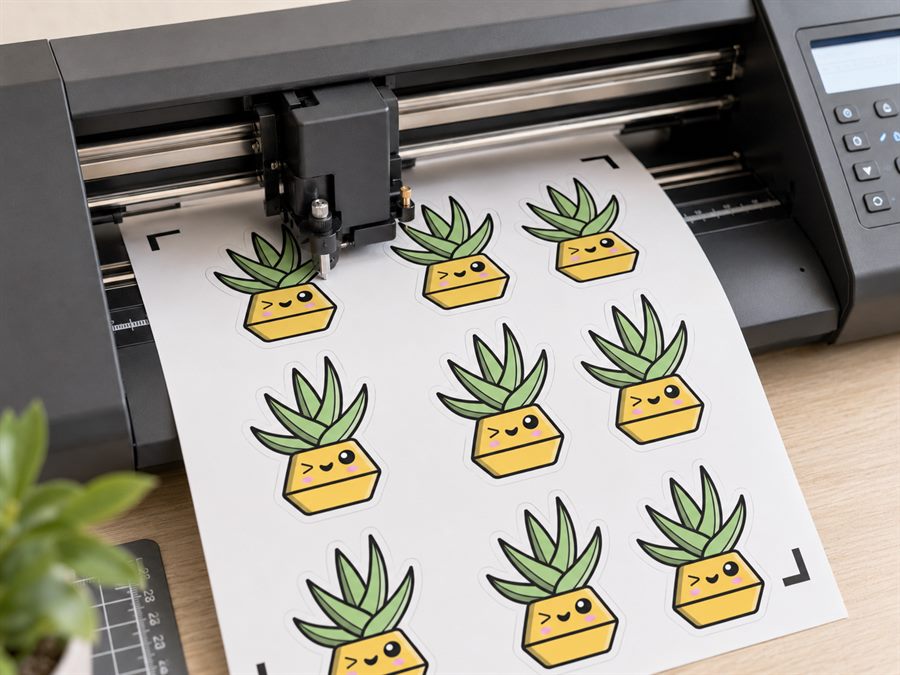

When you send a print-then-cut project, Cricut Design Space does not just print your artwork. It surrounds the whole design with a black rectangular registration frame - a printed border with a distinctive pattern. After you load the printed sheet onto the mat, the machine's optical sensor scans for that frame before it cuts anything. The sensor uses the frame to work out exactly where the sheet is sitting and how it is rotated, then shifts every cut to match the print. If the sensor cannot read the frame cleanly, the machine either throws an error or cuts based on the wrong position, and your lines drift off the artwork.

Almost every "it won't line up" problem comes down to the sensor failing to read that frame correctly. Work through the causes below in order.

1. Lighting

Lighting is the single most common reason a Cricut fails to detect the registration frame. The sensor needs consistent, even light with no glare across the printed sheet.

• Direct sunlight or a bright window washes out the contrast the sensor relies on. Move the machine away from windows or wait for a duller part of the day.
• Glare from overhead spotlights bouncing off the paper reads as a bright patch where the sensor expects the dark frame. Diffuse or reposition the light.
• A dim room is just as bad - the sensor cannot pick out the frame in low light.

Aim for even, indirect room light. If detection keeps failing, try turning off a harsh direct lamp and relying on softer ambient light instead.

2. Printer scaling

Your printer must output the sheet at exactly 100 percent, actual size. If any scaling is applied, the registration frame ends up in a slightly different place than the machine expects, and detection or alignment fails.

• In your printer dialogue, turn "Fit to page" off and set scaling to 100 percent or Actual size.
• Watch out for browsers and PDF viewers that silently shrink to fit margins - check the print preview shows the design at full size.

3. Faint or low ink and toner

The sensor is reading a printed black frame, so it needs that frame to be crisp and dark. If your printer is low on ink or toner, the border prints grey, streaky or patchy, and the sensor struggles to find it.

• Replace or refill low cartridges before a print-then-cut run.
• Run a nozzle check or cleaning cycle if the print looks faint or banded.
• Print on a good draft-plus or normal quality setting rather than the lightest economy mode.

4. Non-white, coloured or glossy stock

The registration frame is designed to be read as dark ink on a plain white background. Anything that reduces the contrast between the frame and the surface around it can cause a misread.

• Coloured or kraft cardstock lowers the contrast against the black frame. Stick to white or very light stock for print-then-cut.
• Patterned or textured surfaces confuse the sensor, which can mistake the pattern for the frame.
• Glossy stock reflects light straight back at the sensor and creates the same glare problem as bright room lighting. A matte or satin finish reads far more reliably.

5. A dirty mat or shifted material

If the sheet moves after the sensor has scanned it, the cut will land in the wrong place even though the frame read fine.

• Press the material down firmly and evenly so it does not lift or slide as the mat feeds in.
• Keep the mat clean and tacky enough to hold the sheet. A mat clogged with dust and fibres lets material shift mid-cut.
• Load the sheet in the orientation Design Space shows on screen, squared up to the mat guides.

6. Exceeding the print-then-cut size limit

Design Space limits how large a print-then-cut design can be. By default the printable area is roughly 6.75 by 9.25 inches, which fits inside a Letter or A4 sheet with room for the registration frame around it. A larger print-then-cut area can be enabled in the settings on supported machines, but it comes with its own constraints on paper size and calibration. If your design creeps beyond the limit, the frame gets pushed to the very edge of the sheet or clipped, and the sensor cannot read it. Keep your artwork comfortably inside the default area unless you have deliberately enabled and calibrated the larger mode.

7. The cut line sits too close to the frame

The sensor needs a clean margin of white around the registration frame to read it. If your cut path runs right up against the printed border - or worse, crosses into it - the machine can misread the frame or start cutting into it. Leave a clear gap between the outermost cut line and the edge of the design so the frame has breathing room.

Where CutPath Pro fits in

An important point about Cricut specifically: Design Space adds and manages its own registration frame. Unlike Silhouette, Roland or Graphtec workflows, you cannot import custom registration marks into Design Space - the machine only trusts the frame it printed itself. So the goal with Cricut is not to supply registration marks. It is to give Design Space a clean, correctly-sized cut file so the artwork it wraps its frame around is easy to read and cut.

That is exactly what CutPath Pro produces. Upload your PNG or JPG and it traces a single, smooth cut line that hugs the edge of your art, sized to sit well inside the print-then-cut area with margin to spare. You import that clean shape and let Design Space add its own registration. Messy, jagged or oversized cut paths - a frequent hidden cause of misreads and failed cuts - simply stop being part of the problem.
